DESIGNATION |
COMANEX REF. |

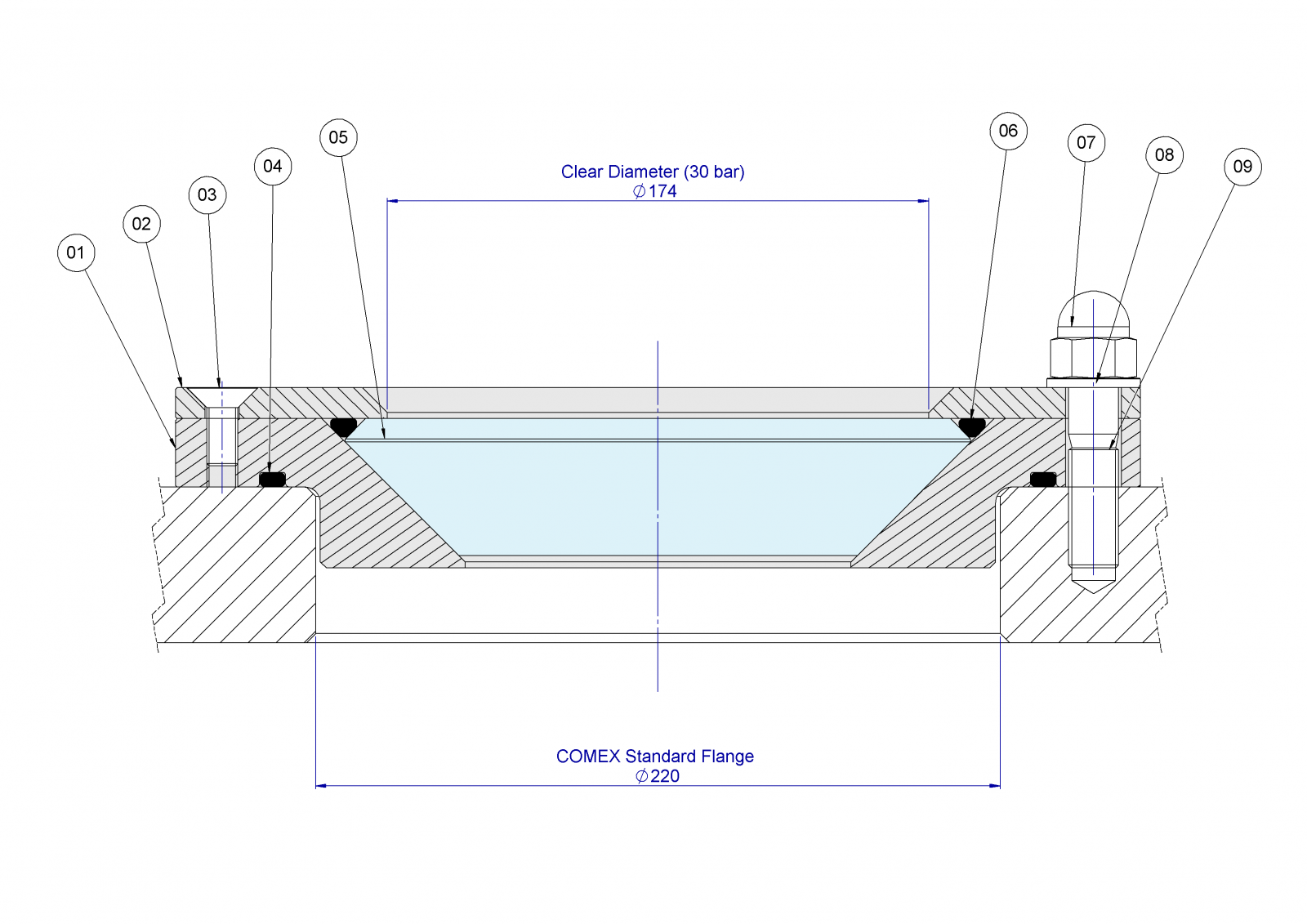

• 30 bar Viewports References: | |
30 bar Viewport Assy (items 1 to 9) |
170 00346 |
30 bar Conical Frustum Window with O-ring (items 5 and 6) |
170 00345 |
30 bar Window O-ring (item 6) |
250 05397 |

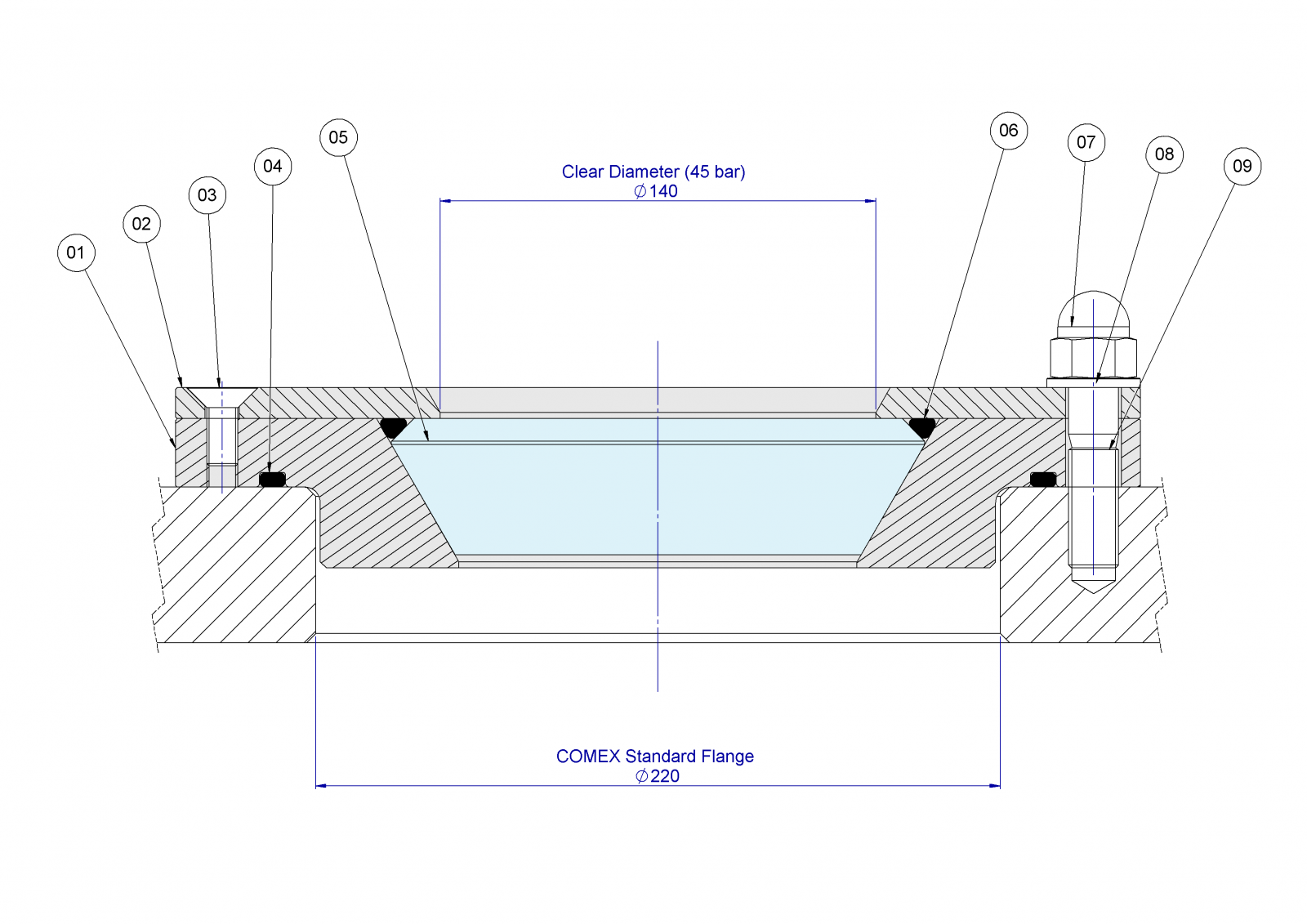

• 45 bar Viewports References: | |
45 bar Viewport Assy (items 1 to 9) |
170 00796 |
45 bar Conical Frustum Window with O-ring (items 5 and 6) |
170 00926 |
45 bar Window O-ring (item 6) |
250 00450 |
• Parts References for both 30 bar and 45 bar Viewports: | |
Window Support O-ring (item 4) |
250 00210 |
SS Stud (item 9) |
260 10084 |
SS Washer (item 8) |
260 03196 |
SS Blind Nut (item 7) |
260 04446 |
SS Retaining Ring Screw (item 3) |
260 03197 |
